Carpet Heat Mat
$143.00 – $1,050.00
Under-carpet heating warms your feet and ensures a comfortable room temperature.
Features & Benefits
Designed for an easy & quick install to any room shape
Durable and tough heating cable, insulated with premium Fluropolymer materials and sandwiched between two layers of specially reinforced aluminium foil
The Carpet Heat Mat adds warmth and comfort to any carpeted room with its evenly spaced heating elements that ensure consistent heat distribution. Easy to install, the mat can be cut and turned at 90° or 180° to fit any room shape or size—there’s no limit to the area it can heat.
Designed for straightforward installation above the carpet underlay, the mat features two key components: heating cables spaced evenly between two layers of reinforced aluminium foil and a single factory-fitted cold tail for connecting to the thermostat.
Ideal for both residential and commercial spaces, the system operates quietly and is controlled by a thermostat, allowing you to adjust the temperature for optimal comfort. The under-carpet heating mat can be easily rolled out and shaped to fit any room directly from the box.
When installing heating under carpet floors, ensure the combined tog value of the carpet and underlay does not exceed 2.0 (or R0.20).
Product Details
The Carpet Heat Mat kit includes:
- Under carpet mat heater
- Cable alarm monitor with batteries (for testing & monitoring for breaks)
- Installation guide
- Note: Thermostats are sold separately
The under-carpet heating mat is an ultra-thin electric radiant floor heating system designed specifically for carpet floors. It ensures easy installation and even heat distribution. The advanced materials used in this system prevent issues like "hot spots" or uneven heating.

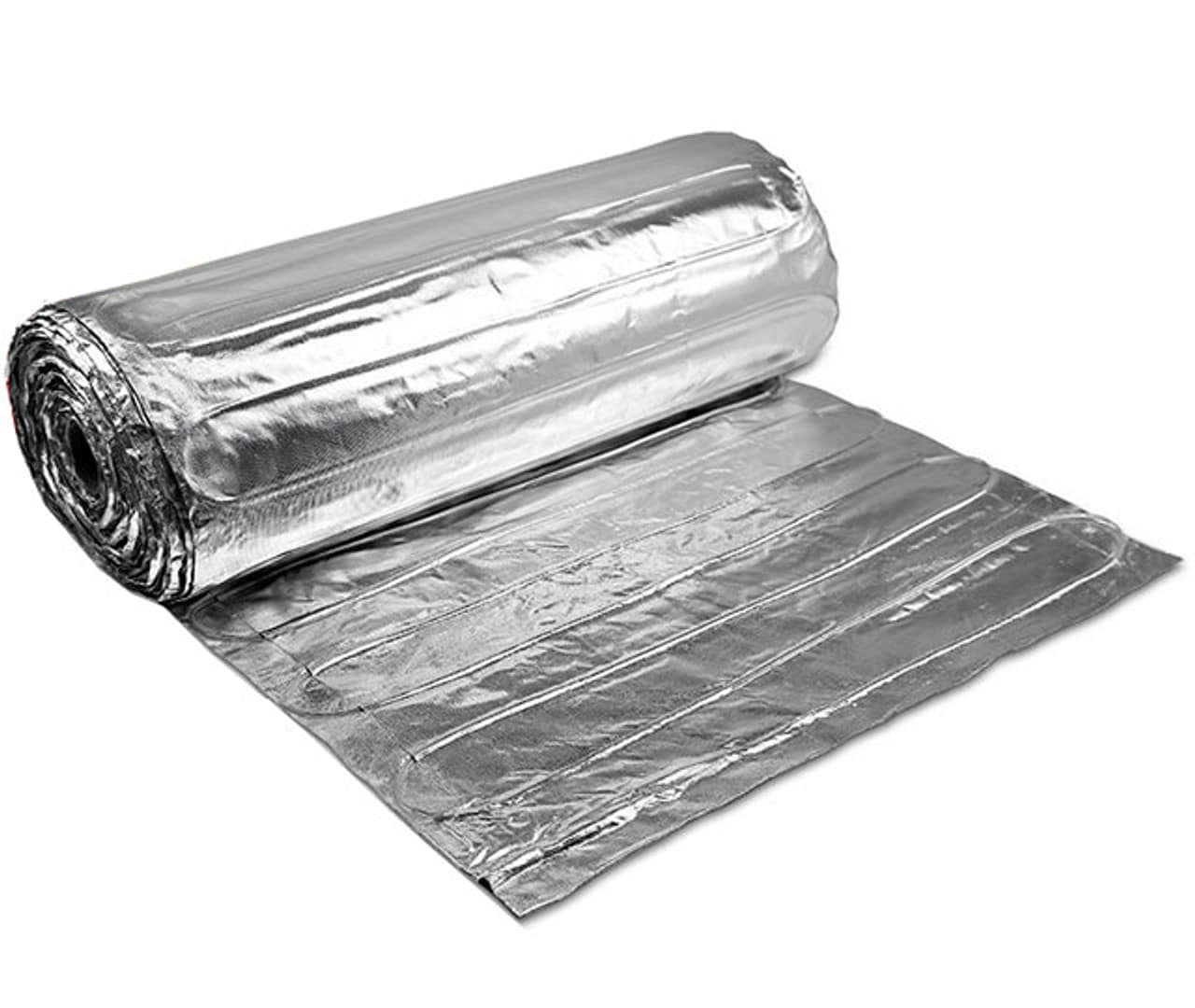

The system consists of fluoropolymer-insulated heating cables sandwiched between two layers of specially reinforced aluminium foil. The evenly spaced heating elements, backed by the aluminium foil, ensure even heat distribution.
The heating element is connected to a power-supply cable, which exits the laminate mat from one corner.
This type of underfloor heating is available in heat outputs of 140 W/m2. It comes in predetermined lengths with a cold tail and is prefabricated and tested in a carefully controlled factory environment.
The cold lead junctions are prefabricated and rigorously tested in a controlled factory environment to ensure reliability
- Application - Floor heating in domestic and commercial buildings.
- Standard - Meets all test requirements of IEC 60335.
- Cost-effective - Underfloor heating delivers heat directly where it's needed, ensuring optimal heat efficiency and minimal energy loss.
- Comfort - The close and uniform spacing of heating cables, combined with thermostat controls to adjust the temperature, ensures greater comfort.
- Safety - Connection to RCD safety switches guarantees protection and safety.
- Range - A wide range of sizes with a heat outputs of 140W/m² .
- Mat width - 500mm.
- Mat length - dependent on m² selected.
- Cold lead length - 2.5mm
- Warranty - 5 Years.
