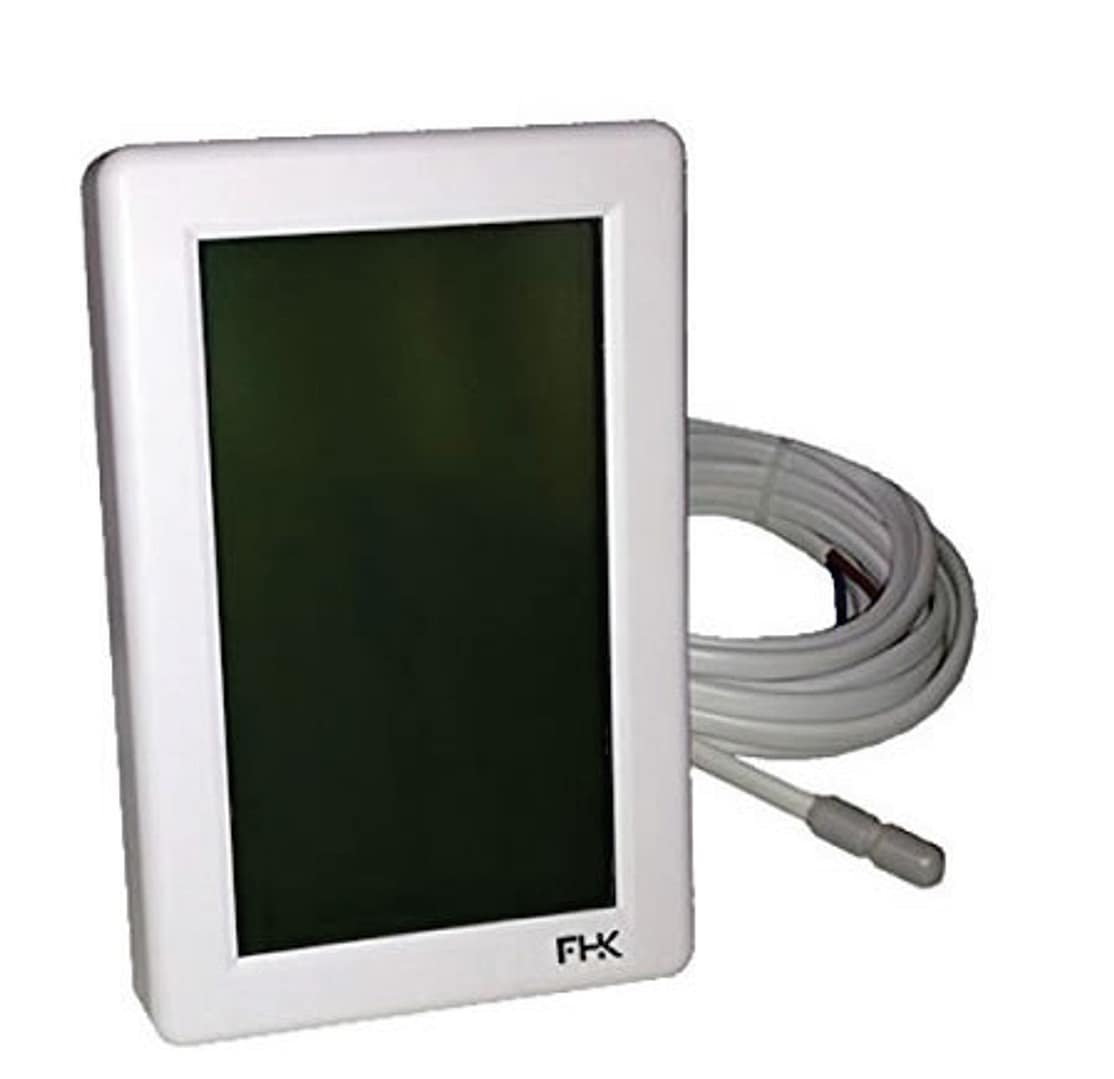

Touch Thermostat, PTVM-810
$198.00
The PTVM-810 touch is an intuitive programmable timer thermostat used for controlling electric floor heating systems.
Features & Benefits
The PTVM-810 touch is an intuitive programmable timer thermostat used for controlling electric floor heating systems. The thermostat is designed for fixed vertical installation.
– Intuitive menu-driven set-up, programming and operation with audio prompts to confirm touchscreen entries
– Large 4:3 backlit touch screen with extra-large touch keys for easy operation
– Scheduled programming or manual mode operation
– Backup battery for user and program setting retention after power loss
– Switching capacity 16A (230V)
Control Modes
– Air temperature only via built-in sensor
– Floor temperature only via floor sensor
– Air temperature via built-in sensor whilst limiting floor temperature via floor sensor
Programming Options
– Choice of 7 individual day or 5/2 day program settings
– 4 time and 4 temperature settings per day
Product Details
- Application: Floor heating control
- Power Source: 230VAC
- Output Relay: 16A Resistive load
- Air Temp Range: 5℃ to 35℃
- Floor Temp Range: 5℃ to 40℃
- Clock Function: 4 Event program
- Battery Backup: 1 x CR1220 3V
- On/Off differential: 0. 5℃
- Protective Housing: IP20
- Housing Material: PC + ABS
- External Sensor: NTC 10K Ohms
- Size: 120mm × 80mm ×16mm
- Colour: White
- Warranty: 3 years
