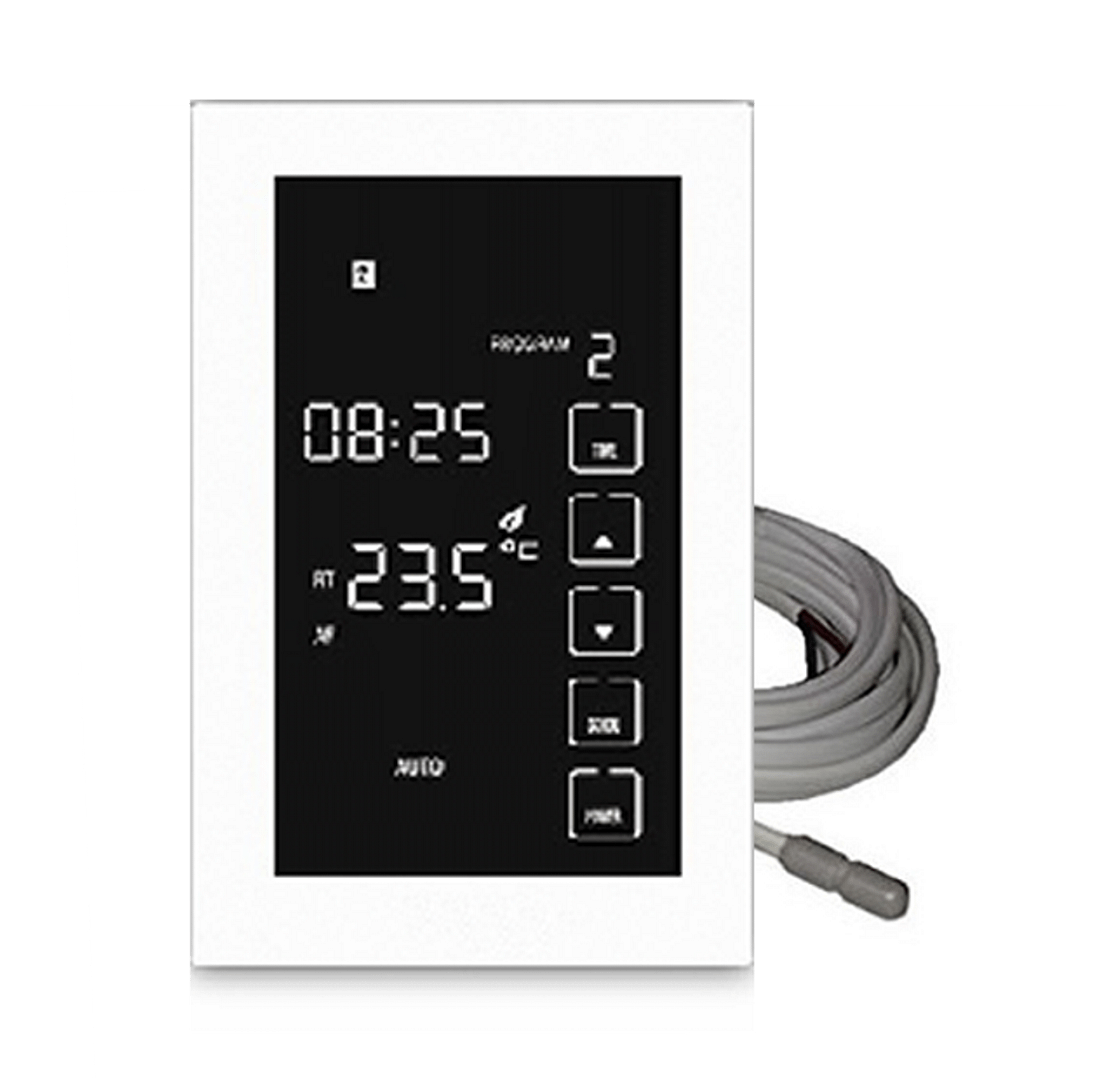

Touchscreen Dual Zone Thermostat, PT-8V32ZPTM
$344.00 – $344.00
Premium glass-front dual zone thermostat, designed for easy, programmable control of electric floor heating & heated towel systems.
Features & Benefits
The PT-8V32ZPTM touch is an intuitive dual zone programmable thermostat & timer used for controlling electric floor heating systems (Zone 1) & heated towel or mirror heaters (Zone 2). The thermostat is designed for fixed vertical installation.
- Premium glass screen
- Intuitive menu-driven set-up, programming and operation with audio prompts to confirm touchscreen entries
- Large 4:3 backlit touch screen with extra-large touch keys for easy operation
- Scheduled programming or manual mode operation
- Backup battery for user and program setting retention after power loss
- Switching capacity 16A (230V)
Control Modes
- Zone 1
- Air temperature only via built-in sensor
- Floor temperature only via floor sensor
- Air temperature via built-in sensor whilst limiting floor temperature via floor sensor
- Zone 2
- On/off time clock
Programming Options
- Zone 1
- Choice of 7 individual day or 5/2 day program settings
- 4 time and 4 temperature settings per day
- Zone 2
- Choice of 7 individual day or 5/2 day program settings
- 4 time settings per day
Product Details
- Application: Electric floor heating & heated towel rail or mirror heating control
- Power Source: 230VAC
- Output Relay: 2 x 8A Resistive load
- Air Temp Range: 5℃ to 35℃
- Floor Temp Range: 5℃ to 40℃
- Clock Function: 4 Event program
- Battery Backup: 1 x CR1220 3V
- On/Off differential: 0. 5℃
- Protective Housing: IP20
- Housing Material: PC + ABS
- External Sensor: NTC 10K Ohms
- Size: 120mm × 80mm ×16mm
- Colour: White & Black
- Warranty: 3 years
